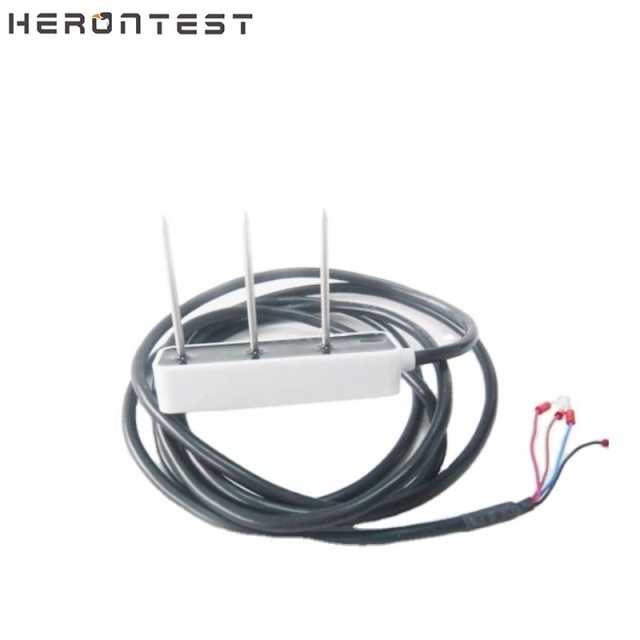

Soil Moisture and Temperature Sensor, RS485 Modbus

Name: Soil Moisture and Temperature Sensor, RS485 Modbus
Brand: HERONTEST
SKU: HNT-MS20
Availability: InStock
Rating: 5 (1 reviews)

No.HNT-MS20

The sensor measure soil moisture content and temperature. It sealed with resin packaged plastic body with sensing rods which can be insert directly into the soil with long time stability. The soil moisture output signal can be RS485, Analog Voltage or Analog Current. It can also be calibrated for specific soils. The sensor is applicable for science research, irrigation, greenhouse, smart agriculture etc.

Integrated with Soil Moisture and Temperature measurement

■ Output Interface with RS485, Voltage, Current

■ Low salinity sensitivity

■ Minimal soil disturbance

■ Water proof to IP68 ratings and can be directly buried into soil

■ High accuracy with excellent stability

■ Reverse power protection and Built-in TVS/ESD protection

Get A Quote

Description

Specifications
Output Interface	Analog Voltage 0-2V (Output resistance ~0ohm)	Analog Current 4-20mA (Load Resistor<500ohm)	RS485 Modbus-RTU
Power Supply	3.6-30V/DC	12-30V/DC	3.6-30V/DC
Power Consumption	6mA@24V DC	50mA@24V DC (with 2*20mA output signal)	6mA@24V DC
Soil Moisture Measurement	Range:0-50%,0-100% Resolution:0-50%:0.03%,50-100%:1% Accuracy:0-50%:2%,50-100%:3%
Temperature Measurement	Range: -40~80℃, Resolution:0.1℃, Accuracy:±0.5℃
Measurement Technique	Moisture by FDR
IP Ratings	IP68
Operating Temperature	-40~85℃
Sensor Rod	Stainless steel
Sensor Sealed	Epoxy resin
Installation	Surface or buried installation
Cable Length	2 meters or Customize
Dimension	887126mm

Parameters

Code

Comments

Code 1:

Product Series

HNT-MS20

Soil Moisture, Temperature Sensor

Code 2:

Measuring Parameters

Soil Moisture & Temperature

Soil Moisture

Code 3:

Soil Moisture Range

0-100%

0-50%

Code 4:

Output Interface

Analog Voltage 0-2V

Analog Current 4-20mA

RS485,Modbus-RTU

RS485,Modbus-RTU & Analog Voltage 0-2V

RS485,Modbus-RTU & Analog Current 4-20mA

SDI-12

Customize

Code 5:

Power Supply

3.6-30V DC (not applicable for 4-20mA output)

12-30V DC

2.7-16V DC (not applicable for 4-20mA output)

Customize

2.0-5.5V DC (not applicable for 4-20mA output)

Code 6:

Cable Length

002

XXX

2 meters

Customize, XXX is required cable length(Unit: meter)

Ordering Code Example:

Sensor with Soil Moisture & Temperature parameters, Soil Moisture Range 100%, Output Interface RS485 Modbus RTU, Power Supply 3.6-30V DC, Cable Length 5 meters. Ordering Code is : HNT-MS20 – A A C A 005
