IP TEST WATERPROOF TEST CHAMBER

IEC60529 Oscillating Tube Test Chamber for IPX3 IPX4

Use this IEC60529 oscillating tube test chamber page to review a water spray test chamber manufacturer option for IPX3/IPX4 validation, with swing pipe sizes, flow range and construction details in view.

Request A Quote View Product

IPX3 / IPX4IEC60529 waterproof validation

R200 to R600Multiple swing pipe sizes

220V / 1KWLab-ready power profile

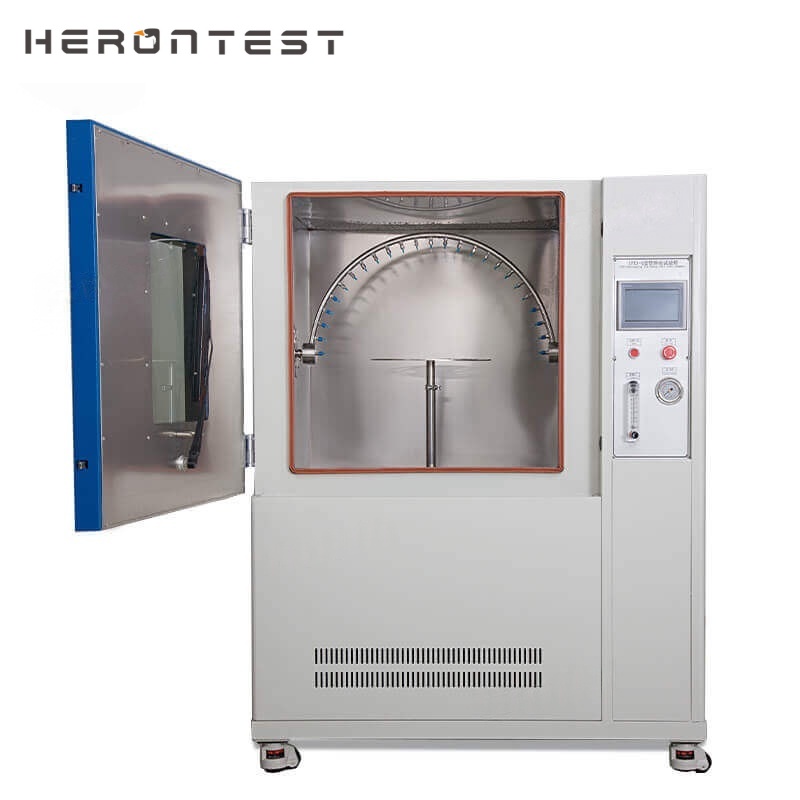

IEC60529 oscillating tube water spray test chamber

Core Specifications

Check The Test Range And Build First

The chamber is built for repeatable IPX3 and IPX4 testing, with adjustable control over spray angle, flow, swing speed and turntable settings.

IEC60529 oscillating tube chamber product photo

Quality assurance teams and R&D departments can use the chamber to simulate controlled water spray and splash conditions while keeping the workflow repeatable and traceable.

Model	No.HNT-IP34C
Standard	IEC60529:1989+A1 (IPX3, IPX4)
Swing pipe sizes	R200, R400, R600
Flow range	0-1 L/min, 0-2 L/min, 0-3 L/min
Swing angle	120deg for IPX3, 350deg for IPX4, or customize
Material	SUS304 stainless steel
Power	220V, 1KW

Turntable speed1-5 r/min accurate control

SafetyLeakage, water shortage, short circuit protection

Swing speed120deg in 4s or 360deg in 12s

Use casesElectronics, automotive, household appliance and outdoor equipment validation

Test Matrix

Choose The Swing Pipe And Chamber Size

The model family separates into three practical setups. This helps a buyer match the chamber to the sample size and the test throughput they need.

R200

Small chamber footprint with 0-1 L/min flow and a 150-250 mm turntable height range, suited to compact samples.

R400

Mid-size option with 0-2 L/min flow and a 350-600 mm turntable height range for broader lab use.

R600

Larger setup with 0-3 L/min flow and a 550-1000 mm turntable height range for bigger assemblies.

Compare Nearby Waterproof Test Equipment

These neighboring models help a buyer decide whether the workflow needs a spray nozzle tester, a handheld nozzle setup, or a high-pressure chamber.

IPX5 Tester

Useful for spray test workflows where a handheld nozzle profile is the closer fit.

Open product

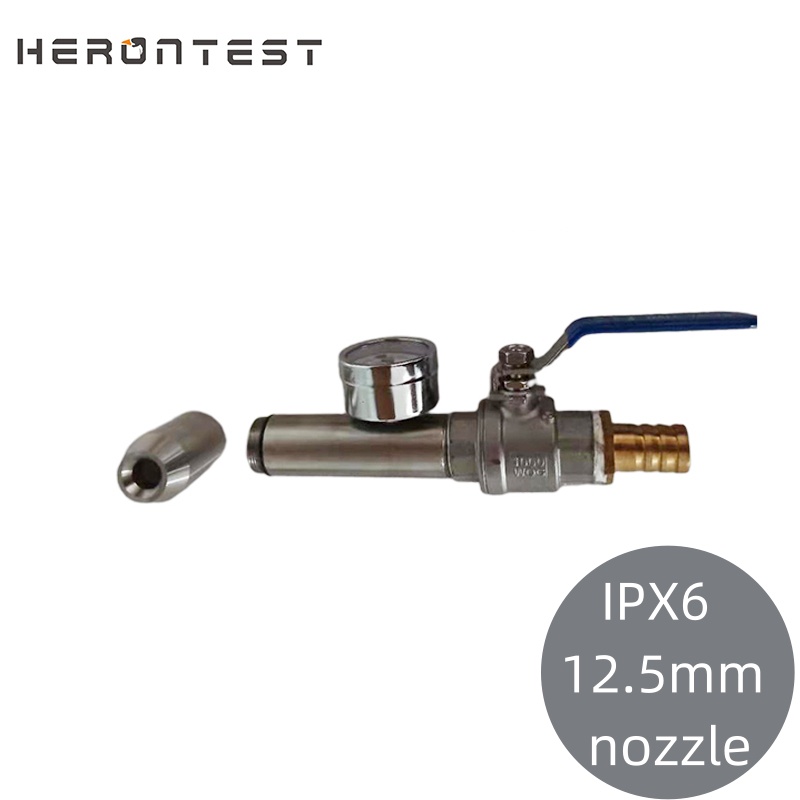

IEC60529 IPX6 Handheld Waterproof Testing Equipment

IPX6 Handheld Tester

Fits buyers who want a handheld solution with a 12.5mm nozzle reference.

Open product

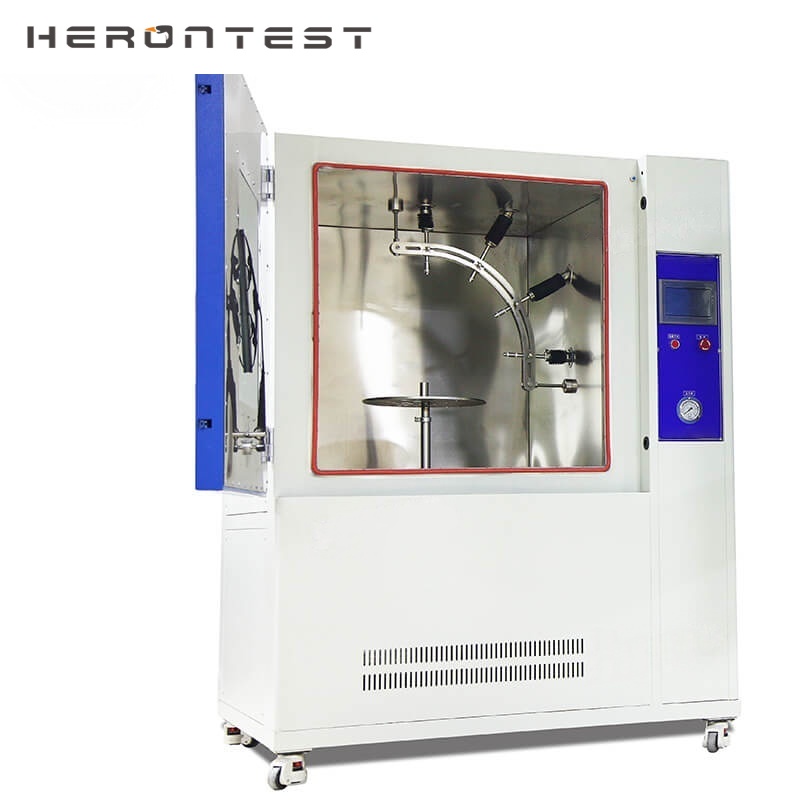

ISO20653 IPX9k high pressure waterproof test chamber

IPX9K Chamber

Best when the test program needs a higher-pressure waterproof validation stage.

Open product

Applications

What This Chamber Fits Best

The site positions the chamber for validation teams that need controlled resistance testing rather than one-off demo spraying.

Electronics manufacturingUse for enclosure and assembly validation where repeatable ingress checks matter.
Automotive parts testingHelpful for components that face rain, splash and environmental exposure.
Household appliance quality assuranceSupports testing teams checking protection behavior before shipment.
Outdoor equipment developmentUseful when the product must perform after water spray or splash exposure.

Selection Checklist

What To Confirm Before You Send An Inquiry

Target Standard

Confirm whether the sample needs IPX3, IPX4, or both, then choose the matching swing setup.

Sample Size

Match the turntable diameter and height range to the product dimensions you will test most often.

Control Needs

Check whether you need customize swing speed, flow rate, or spray angle control for lab routines.

Three Notes That Shape A Better Setup

Each article focuses on a different decision: compliance, model choice, and product validation rhythm.

IP Waterproof Compliance

Good for buyers who want the chamber's compliance role framed against IP test expectations.

Read article

Reliable IP Verification

Useful when comparing adjustable models and choosing a chamber that supports stable verification.

Read article

Product Validation Workflow

Helps teams connect the chamber setup to repeatable product validation steps.

Read article

FAQ

IEC60529 Water Spray Test Chamber Questions

What does this chamber test?

The chamber is designed for IPX3 and IPX4 water spray and splash testing under IEC60529:1989+A1.

Which swing pipe sizes are listed?

The product page lists R200, R400, and R600 configurations.

What flow range is shown?

The listed flow ranges are 0-1 L/min, 0-2 L/min, and 0-3 L/min depending on the model.

What materials are used?

The swing pipe material is SUS304 stainless steel, chosen for corrosion resistance and durability.

What power supply is required?

The product page lists a 220V power supply and 1KW power requirement.

How should I start an inquiry?

Use the quote or contact path on HERONTEST to confirm the model, chamber size, and test setup you need.
