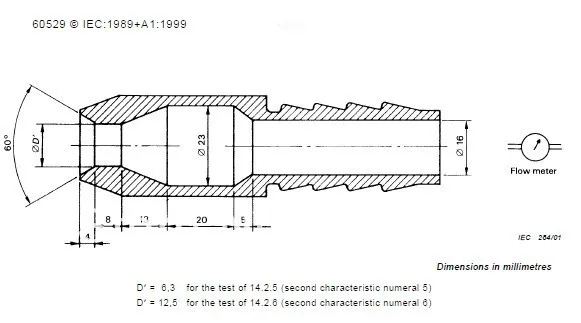

The IPX5 tester is used to spray with water from all directions. IPX5 specifies a nozzle with a 6.3mm diameter opening and a flow of 12.5l/min.
The tester consists of a pipe and a nozzle, which the pipe is also equipped with a pressure gauge and handle. The nozzles is replaceable, you can switch ipx5 nozzle or ipx6 nozzle according to your test requirement.
Introduction:
The IPX5 tester is used to spray with water from all directions. IPX5 specifies a nozzle with a 6.3mm diameter opening and a flow of 12.5l/min.
The tester consists of a pipe and a nozzle, which the pipe is also equipped with a pressure gauge and handle. The nozzles is replaceable, you can switch ipx5 nozzle or ipx6 nozzle according to your test requirement.
Targeted Application in Quality Control and Product Testing
This handheld waterproof testing equipment is engineered for quality control engineers and product development teams needing precise verification of device water resistance. Designed for compliance with IEC60529 and related industry standards, it supports assessing product robustness against water ingress. Users focused on IPX5 verification will benefit from the instrument’s interchangeable nozzles that accommodate various test requirements including provisions for IPX3 and IPX4 spray test nozzle profiles, expanding its functional utility in manufacturing and research environments. This equipment enhances the reliability of water resistance testing workflows by combining portability with controlled test parameters.
Precision Engineering and Technical Specifications
Featuring a stainless steel nozzle with an exact 6.3mm diameter, this device produces a consistent water flow rate of 12.5 ± 0.625 liters per minute, a critical specification for ensuring repeatability in waterproof testing. Equipped with an integrated pressure gauge and ergonomic handle, it allows precise control over the water jet's pressure and spray quality. The unit supports test distances ranging from 250 to 300 mm, aligned with IEC60529 protocols. Its interchangeable nozzle capability extends operability for IPX6 level tests, making it adaptable for various compliance regimes. Constructed with durable materials, the tester provides reliable performance with accurate water flow metrics required for standardized waterproofness assessments.
Industry Usage and Compliance Validation Roles
Widely used in electronics, outdoor equipment manufacturing, and industrial product development, this test system is essential for validating enclosure integrity under water exposure. Its conformance with IEC60529, IEC60335, and IEC60598 standards ensures regulatory compliance during product certification processes. The device aids in demonstrating waterproof claims for handheld gadgets or IP-rated housings and supports routine quality inspections to maintain manufacturing standards. Additionally, it provides a practical solution for calibrating other water spray equipment and conducting training sessions on waterproof testing methods, thereby streamlining operations in technical quality assurance departments.
Product Advantages
Modular and Adaptive Design Enhancements
The device’s engineering incorporates a modular system structure allowing rapid interchange of nozzles to switch between IPX5, IPX3, IPX4 spray test nozzle configurations, and IPX6 testing scenarios. This design flexibility eliminates the need for multiple separate instruments, reducing investment and storage needs. The stainless steel nozzle and durable body materials contribute to long-term wear resistance under repeated exposure to pressurized water. An integrated pressure gauge within the design provides immediate feedback on water spray pressure, enhancing test accuracy and repeatability. These features collectively optimize integration into existing waterproof testing stations and streamline compliance workflows.
Enhanced Operational Efficiency and User Control
This handheld testing equipment excels in user ergonomics and control, facilitating precise manipulation of water spray characteristics essential for valid IEC60529 IPX5 testing. The ergonomic handle design minimizes operator fatigue during prolonged use. The consistent flow rate and adjustable test distance ensure that testing conditions remain within defined standards without manual recalibration. Its portability and robust construction enable deployment across multiple production or lab environments, supporting field inspections and lab verification alike. Overall, this tool delivers dependable performance while maximizing ease of use and reducing testing errors, which directly benefits quality assurance professionals.
1. Material: Stainless steel nozzle
2. IPX5 nozzle diameter: 6.3mm
3. IPX5 water flow rate: 12.5±0.625L/min
4. Conformance standards: IEC60529, IEC60335, IEC60598
5.Test distance to sample: 250mm-300mm
Use Scenarios
Waterproof Integrity Assessment in Electronics Manufacturing
In electronics production lines, the IEC60529 IPX5 handheld waterproof tester with a 6.3mm nozzle plays a critical operational role in verifying water resistance compliance of handheld devices and IP-rated enclosures. Operating within controlled test stations, the device applies a standardized water jet spray consistent with IPX5 specifications, enabling quality engineers to detect vulnerabilities in sealing technologies. The pressure gauge and spray nozzle precision ensure the test meets IEC60529 requirements, facilitating traceable results for product certifications. Seamlessly integrated into the quality assurance workflow, this testing equipment supports risk mitigation strategies related to moisture damage and regulatory mandates compliance.
Calibration and Validation in Product Development Labs
During the design and validation phases of outdoor or waterproof products, this testing tool is deployed to simulate real-world water exposure conditions outlined in IEC60529 and related standards. Product developers incorporate it to verify prototype resistance to water jets, ensuring functional integrity before mass production. Its interchangeable nozzles enable simulation of varied water spray patterns, including IPX3 and IPX4 spray test nozzle effects, accommodating different levels of ingress protection testing. The handheld nature allows flexible positioning and iterative testing, enhancing development speed and validation accuracy, ultimately contributing to improved product durability and compliance assurance strategies.
What standards does the IEC60529 IPX5 Handheld Waterproof Testing Equipment comply with?
Our tester strictly adheres to IEC60529 IPX5 water resistance requirements, as well as IEC60335 and IEC60598 standards. This ensures that your products are accurately tested for water ingress protection in line with internationally recognized testing protocols.
Can I customize the nozzle size or flow rate on the handheld waterproof testing equipment?
We offer interchangeable nozzles including the standard 6.3mm diameter for IPX5 and alternate nozzles for IPX6 testing. While no custom sizes are listed, these options cover multiple IEC60529 testing scenarios, enhancing versatility for different product evaluations.
How do I maintain and calibrate the spray test nozzle to ensure accurate results?
To maintain consistent test accuracy, regularly inspect the stainless steel spray test nozzle for clogging or wear, and verify the water flow rate remains at 12.5 ± 0.625 L/min. Our equipment’s built-in pressure gauge aids in monitoring test conditions for dependable performance.
What shipping and payment options do you provide for purchasing this waterproof testing equipment?
We typically ship the equipment within 3 days after payment. Accepted payment methods include T/T bank transfer, PayPal, Western Union, credit cards, L/C, WeChat Pay, and Alipay. This flexibility supports smooth procurement for your testing requirements.
