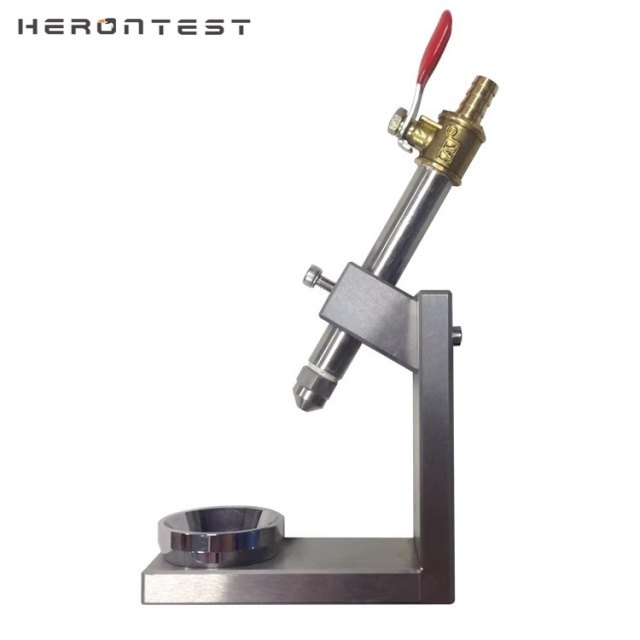

IEC60335-2-75 Figure 101 Splash Apparatus
1.Product Details
Splash apparatus accordance with IEC60335-2-75 Figure 101. For testing the protection against moisture due to splashing water. It is used to simulate the dripping of rainwater on the ground, the state of water splashing from the ground, and the waterproof performance test of the bottom of electrical products for washing machines and other similar household appliances.

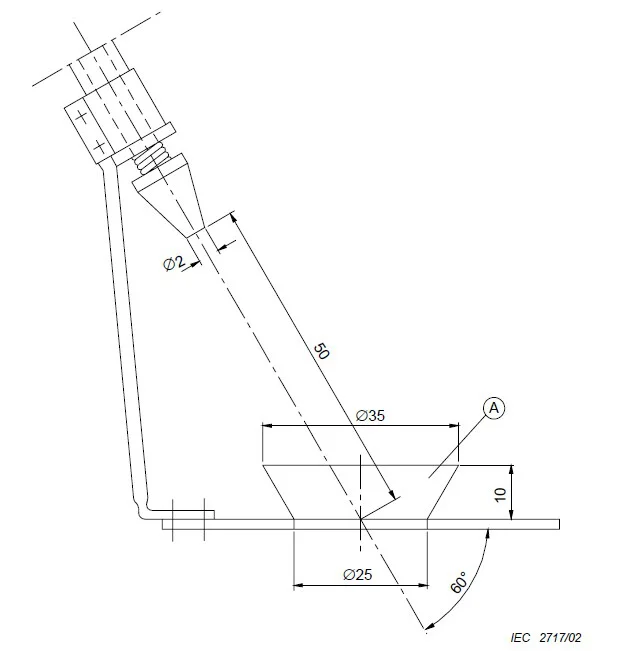

2. Technical parameters:
Nozzle diameter: Φ2mm
Spray angle: 60° from the horizontal
Sample bowl diameter: Φ35mm
Bottom diameter of bowl: Φ25mm
Sample bowl height: 10mm
