Functional Scope and Targeted User Base in Industrial Testing
This iec60529 water spray test chamber is designed for manufacturers, quality assurance teams, and R&D laboratories requiring rigorous validation of waterproof performance. Targeting companies producing electronic devices, enclosures, and outdoor equipment, it enables standardized testing according to international norms such as IEC60529:1989+A1:1999. The equipment supports users in verifying product integrity against strong water jets, ensuring compliance with IPX5 and IPX6 ratings. Its accessible interface and live testing capability via IP66 waterproof sockets make it practical for in-line production validation and research-driven development initiatives.
Technical Architecture and Precise Measurable Capabilities

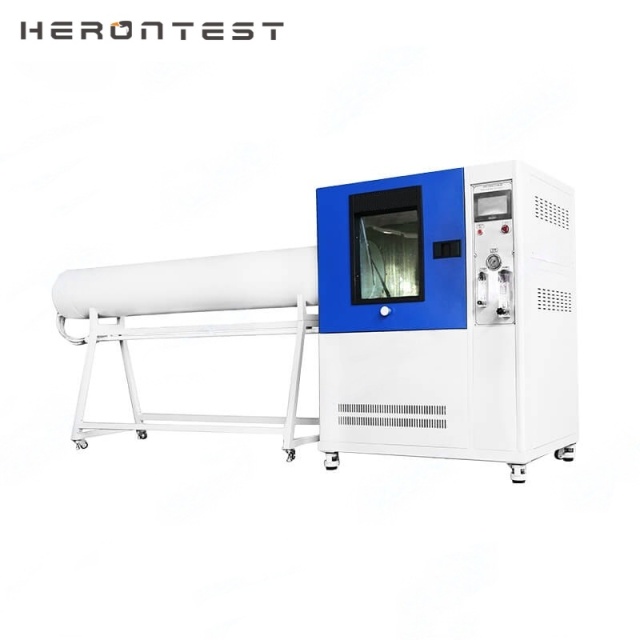

Constructed primarily from SUS304# stainless steel, this iec60529 water spray test chamber features a robust box-type water recycling system that negates the necessity of specialized waterproof rooms. It integrates precisely calibrated nozzles—6.3mm diameter for IPX5 and 12.5mm for IPX6—which deliver consistent water flow rates of 12.5 ± 0.625 and 100 ± 5 L/min respectively at a spray distance of 2.5 meters. The multi-stage stainless steel pump ensures stable pressure, while secure machinery fixation maintains nozzle position throughout testing. Various model configurations accommodate diverse sample sizes, facilitating flexible applications across a wide range of product dimensions.
Industry Integration and Practical Testing Applications
The iec60529 water spray test chamber is extensively utilized in sectors requiring validated water ingress protection, such as electronics manufacturing, outdoor product development, and quality control of ruggedized equipment. It supports compliance certification workflows, durability evaluations of consumer appliances, and component-level water resistance tests. This apparatus enables live sample testing under real-time water exposure conditions, offering valuable data for iterative design improvement and product reliability assessments. Its modular design and conformity to IEC60529 standards make it integral for manufacturers seeking authoritative waterproof certification across global markets.
Structural and Design Innovations Enabling Versatile Testing
This iec60529 water spray test chamber incorporates a compact stainless steel construction that balances corrosion resistance and mechanical strength crucial for sustained water jet exposure. The box-type recycling design enhances operational efficiency by conserving water and eliminating the need for dedicated waterproof rooms, optimizing laboratory space utilization. Additionally, fixed nozzle mounts combined with adjustable sample trays ensure precise and repeatable positioning aligned with international specifications. The inclusion of an IP66-rated waterproof socket facilitates simultaneous electrical operation monitoring, reinforcing its integrated test system capability.
Performance Reliability and User-Centric Functional Efficiency
Designed with industrial application demands in mind, this iec60529 water spray test chamber offers stable and controlled water jet delivery enabling reproducible test conditions that align with IPX5 and IPX6 standards. Its user interface and modular model selection provide adaptability to varied product sizes and testing requirements, enhancing workflow efficiency for engineering teams. The silent multi-stage pump system sustains consistent spray parameters, minimizing downtime and maintenance. Furthermore, the system’s adaptability supports both quality assurance and R&D processes, delivering measurable ROI through precise water ingress resistance evaluations.
Technical parameters:
| Model | HNT-IP56C-500L | HNT-IP56C-700L | HNT-IP56C-1400L | HNT-IP56C-1700L | HNT-IP56C-1900L |
| Inner size(mm)W*D*H | 800*800*800 | 900*900*900 | 1180*1180*1000 | 1180*1180*1180 | 1180*1180*1300 |
| Outer size(mm)W*D*H | 4000*1050*1600 | 1150*1150*1700 | 4000*1450*1800 | 4000*1450*1850 | 4000*1450*2000 |
| Turntable diameter(mm) | 600 | 600 | 800 | ¢800 | 800 |
| IPX5 diameter(mm) | 6.3 | ||||
| IPX6 diameter(mm) | 12.5 | ||||
| IPX5 flow(L/min) | 12.5±0.625 | ||||
| IPX6 flow(L/min) | 100±5L/min | ||||
| Power(Mpa) | According to the provisions of water flow regulation | ||||
| spray water distance | 2.5M | ||||
| Pump | stainless steel multi-stage pump | ||||
| Spray nozzle fixing method | machinery fixation | ||||
| Water pipe materials | Stainless steel+PPR | ||||
| Inner box materials | SUS304#stainless steel | ||||
| Sample table materials | SUS304#stainless steel plate | ||||
| protector | Electric leakage, water-break, cutting-out | ||||
| Power supply(V) | 380V | ||||
| Power(KW) | 3 | ||||
| Standard | IEC60529:1989+A1:1999,GB4208,GB7000.(IPX5,IPX6) | ||||
Use Scenarios
Outdoor Equipment Assessment for IPX5 and IPX6 Compliance
In environments such as outdoor electronics manufacturing or ruggedized gear production, this iec60529 water spray test chamber serves as a critical instrument for validating resistance to high-intensity water jets. It operates within quality control labs to simulate real-world water exposure conditions as per IEC60529 standards, enabling verification of product ingress protection ratings. Its configurable nozzles and secure sample fixtures integrate seamlessly with production testing workflows, allowing manufacturers to certify equipment against IPX5 and IPX6 requirements effectively and sustaining product marketability for harsh operational contexts.
Electronic Component Certification Utilizing Live Testing Features
This iec60529 water spray test chamber is employed within R&D and certification centers focused on electronic modules and sensor units. The inclusion of an IP66 waterproof socket supports live functional testing of samples during water jet exposure, crucial for validating performance under actual operating conditions. This capability ensures compliance with stringent waterproofing standards and facilitates early detection of design vulnerabilities. Integration within the testing lifecycle streamlines certification procedures and supports product innovation cycles by enabling enhanced water ingress resistance analysis and documentation.
What types of materials are used in your IEC60529 water spray test chamber?
Our IEC60529 water spray test chamber is constructed using high-quality stainless steel, specifically 304B for the working box and SUS304# for critical components. This ensures durability and corrosion resistance, making it ideal for precise and long-lasting waterproof testing environments.
Can you customize the IEC60529 IPX5 IPX6 Strong Water Jet Intrusion Protection Test Equipment?
Yes, we offer OEM and ODM customization services for our IEC60529 water spray test chamber. Our experienced technical team works closely with clients to tailor nozzle sizes, flow rates, and other parameters to fit specific testing requirements, ensuring your product meets needed standards.
Do you provide support for installation and use of the IPX5/IPX6 water jet test equipment?
Yes, we have a professional after-sales team providing telephone, digital, and onsite support to assist with installation, operation, and maintenance of the IPX5/IPX6 test equipment. We aim to ensure your testing process runs smoothly and efficiently with our IEC60529 water spray test chamber.
What is the typical delivery lead time for your strong water jet intrusion protection test equipment?
Most models are available in stock and can be shipped within 3 days after payment. For larger or electrical versions of the IEC60529 water spray test chamber, delivery typically takes between 1 and 4 weeks depending on the order complexity and customization requirements.
